EXP60-1B class 1a building 30ft 1bedroom 1bathroom 1kitchen

Name: EXP60-1B class 1a building 30ft 1bedroom 1bathroom 1kitchen
Brand: Expandihome AU
Price: 70000.00 AUD
Availability: InStock

EXP60-1B class 1a building 30ft 1bedroom 1bathroom 1kitchen

$70,000.00 AUD

Sale Sold out

Shipping calculated at checkout.

* Council approval requires extra certification fee

Quantity

View full details

Features

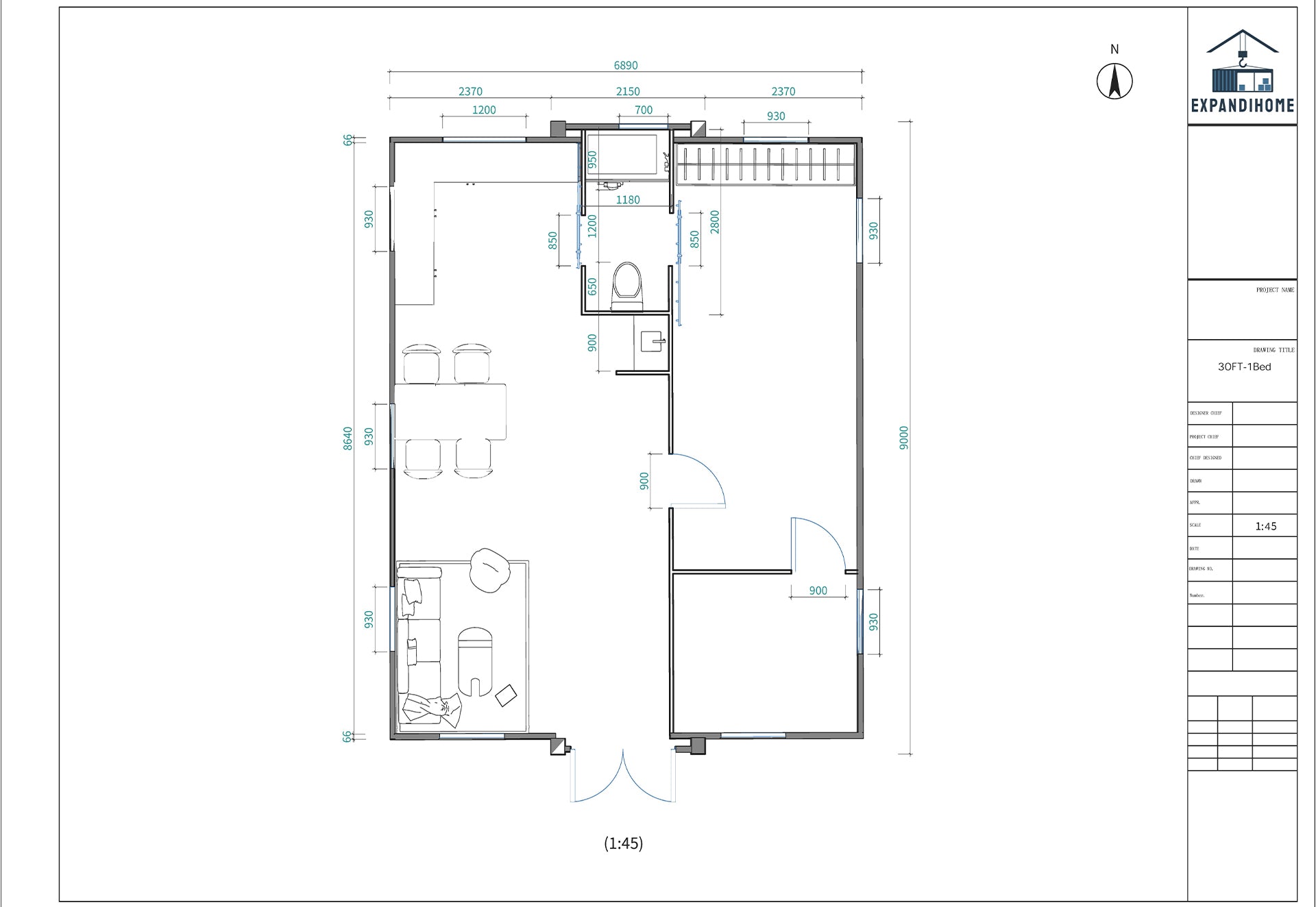

Dimension
- External Dimensions (mm): 6890W*9000L*2850H
- Internal Dimensions (mm): 6760W*8550L*2420H
- Shipping Dimension (mm): 2150W*9000L*2850H
- Total about 60 square meters
Frame and Wall Panels
- 4mm+ Galvanized Steel frame with Q235B standard
- Total 65mm PU Insulation Board
Flooring
- 50mm PU insulated on the bottom floor.
- This 18mm magnesium sub floor concrete composite is resistant to water, rot, and insects.
- Additional 4mm SPC luxury timber style surface floor is above.
- PVC cornice and skirting
Entrance Door & Windows
- Broken Bridge Aluminum double door
- Broken Bridged Aluminium framed windows with flyscreens
- Double glazed glass windows
- Coated glass windows to safeguard your privacy
Bathroom
- Compliance to Livable Housing Design Standard as ABCB requires
- Full room width shower on marble look shower base with a rain maker shower head, and toughened glass sliding door
- Vanity with porcelain sink, chrome flick mixers
- S-trap toilet with soft closing lid
- Marble-patterned UV wall paneling with an integrated shaving cabinet and mirror.
Kitchen
- 900mm height kitchen L type cabinet with overhead storage
- Made of quality plywood and fine fittings
- Double bowl stainless steel sink with flip mixer
- 36mm wooden bench top/ 20mm silica free bench top(Optional)
- The kitchen is fully installed and ready for use upon connection to utilities.
Plumbing
- Toilet & pipes with watermark certification
- All plumbing connections are on the external bathroom wall except customized condition
- Black water: 100mm+ connection
- Grey water: 65mm connection
- Code water: 20mm connection
- Hot water: ½ inch nipple require to connect hose (poly pipe)
Electricity system
- Electricity equipped with RCDs, switches, sockets, air circuit breakers, and wires that comply AS 3000:2018 with SAA certificate.
- 1.5mm power cable for all lights complies to AS 5000.2
- 2.5mm power cable for all power points complies to AS 5000.2
- Electrical Distribution Board installed with 3 circuits complies to AS60898.1
- Mains power can be connected to cabin via 15 amp extension lead
- Industrial waterproof plug socket with IP66
Accessories
- Pitched roof for the house included
- Roof flashing components
- D-type Waterproof tapes
- Buckle strips for inner roof & floor
- small supportlegs for side wings
- Screw and bolts
- Other spares for floor etc.
Installation and approval
- Soil test, engineering plan, energy rating etc will be submitted by ExpandiHome Partner to get approval.
- QBCC certified builder is recommended for set up
- Start installation upon engineering plan approved
- Local professional electrician / plumbing services are suggested for connections.
