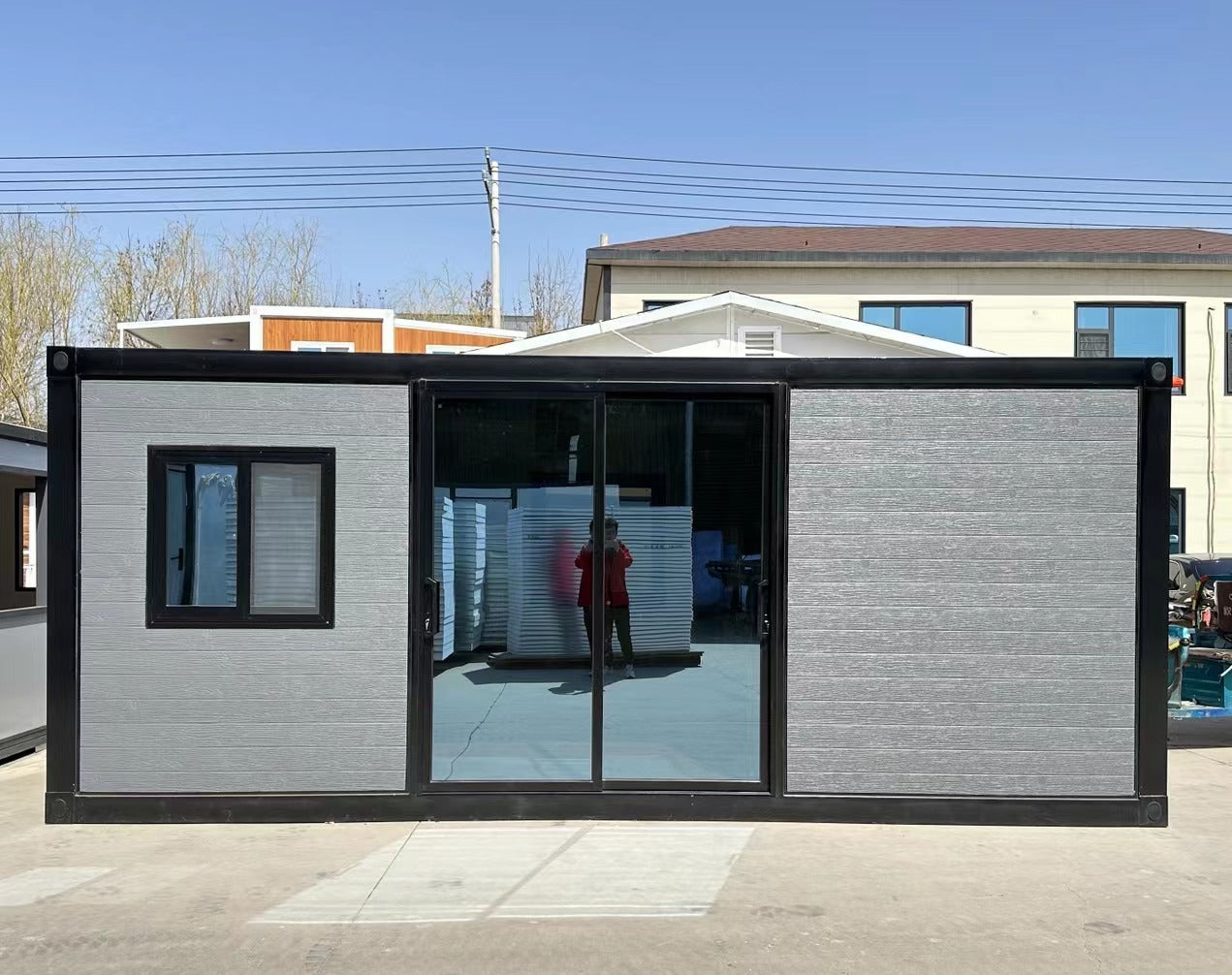

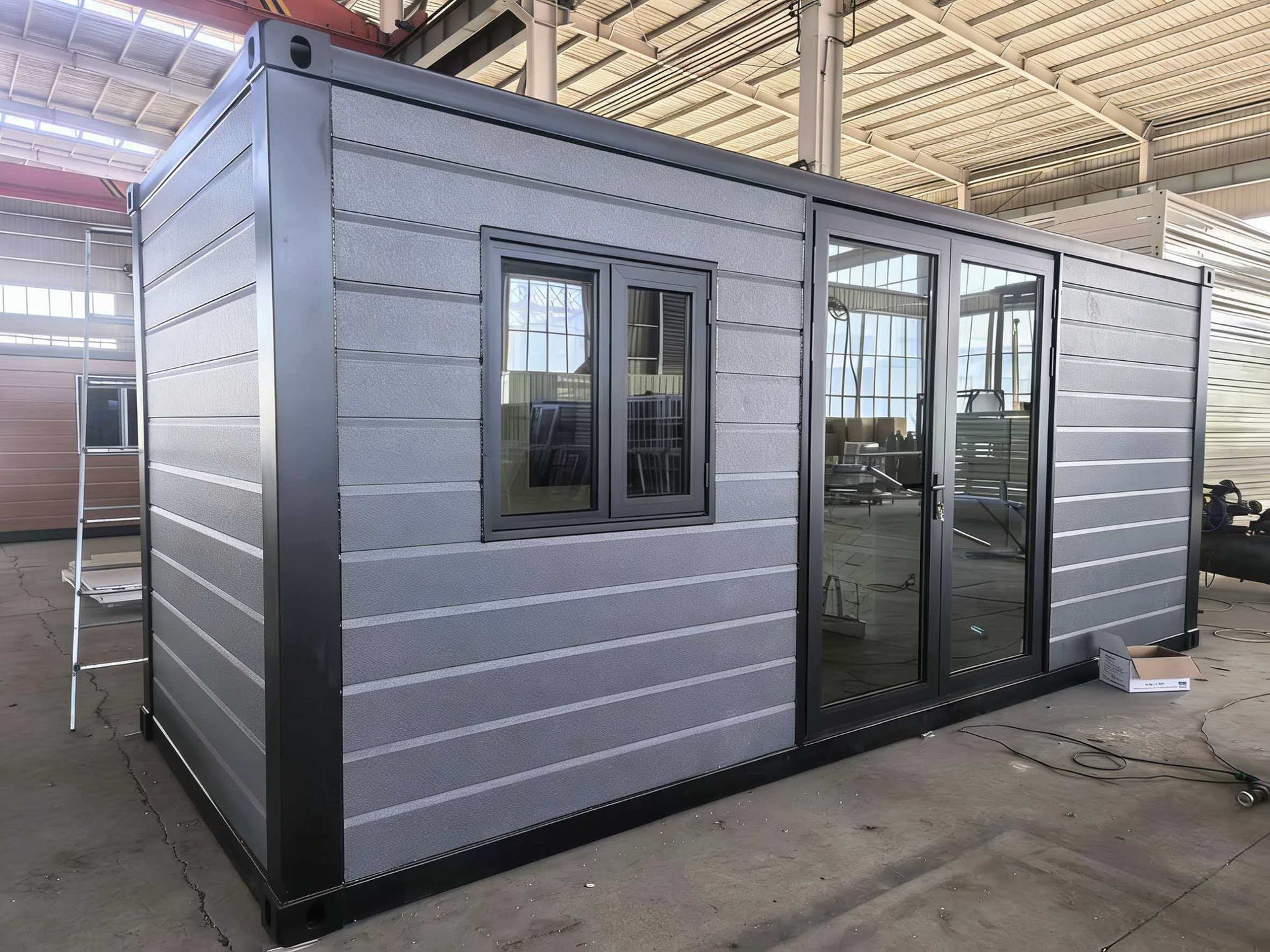

20ft Studio 1bed 13SQM

20ft Studio 1bed 13SQM

$19,000.00 AUD
$19,000.00 AUD
Sale Sold out
Shipping calculated at checkout.
View full details

Features

  • Dimension

    • External Dimensions (mm): L5900*W2200*H2480
    • Internal Dimensions (mm): L5720*W2050*H2200

  • Frame and wall Panels

    • 2.3mmTHK Galvanized Steel of Q235B
    • Wall pannels of total 65mm(50mm EPS Insulation Board Plus 15mm Cladding board)

  • Flooring

    • This 18mm magnesium subfloor concrete composite is resistant to water, rot, and insects.
    • Additional 3mm SPC luxury timber style surface floor is above.
    • PVC cornice and skirting

  • Entrance Door & Windows

    • Broken Bridge Aluminum door
    • Broken Bridged Aluminium framed windows
    • Double glazed with 5mm thick glass
    • Flyscreens on all windows
    • Coated glass windows to protect privacy

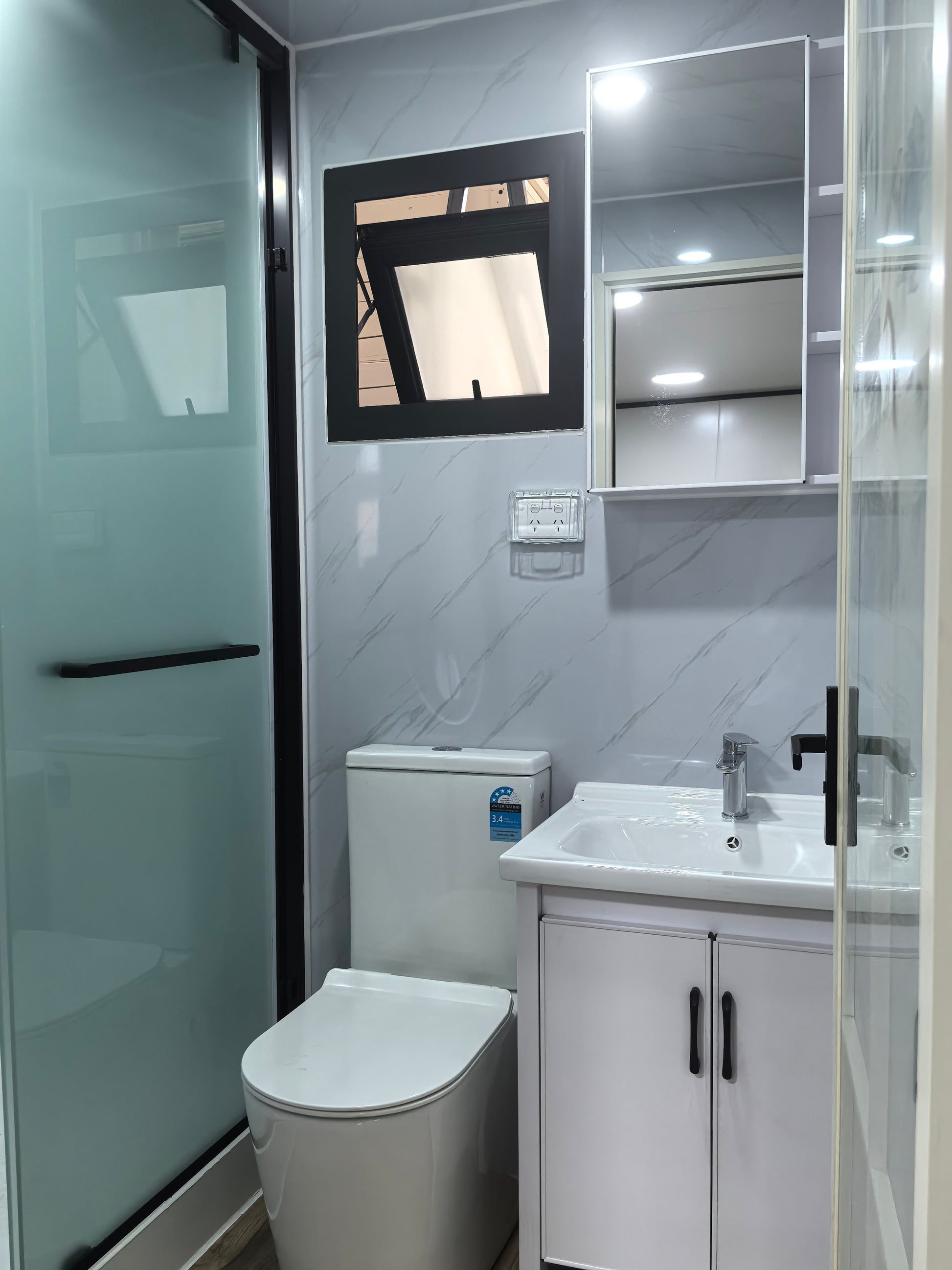

  • Bathroom

    • Full room width shower on marble look shower base with a rain maker shower head, and toughened glass sliding door
    • Vanity with porcelain sink, chrome flick mixers
    • S-trap toilet with soft closing lid
    • Marble-patterned PVC wall paneling with an integrated shaving cabinet and mirror.

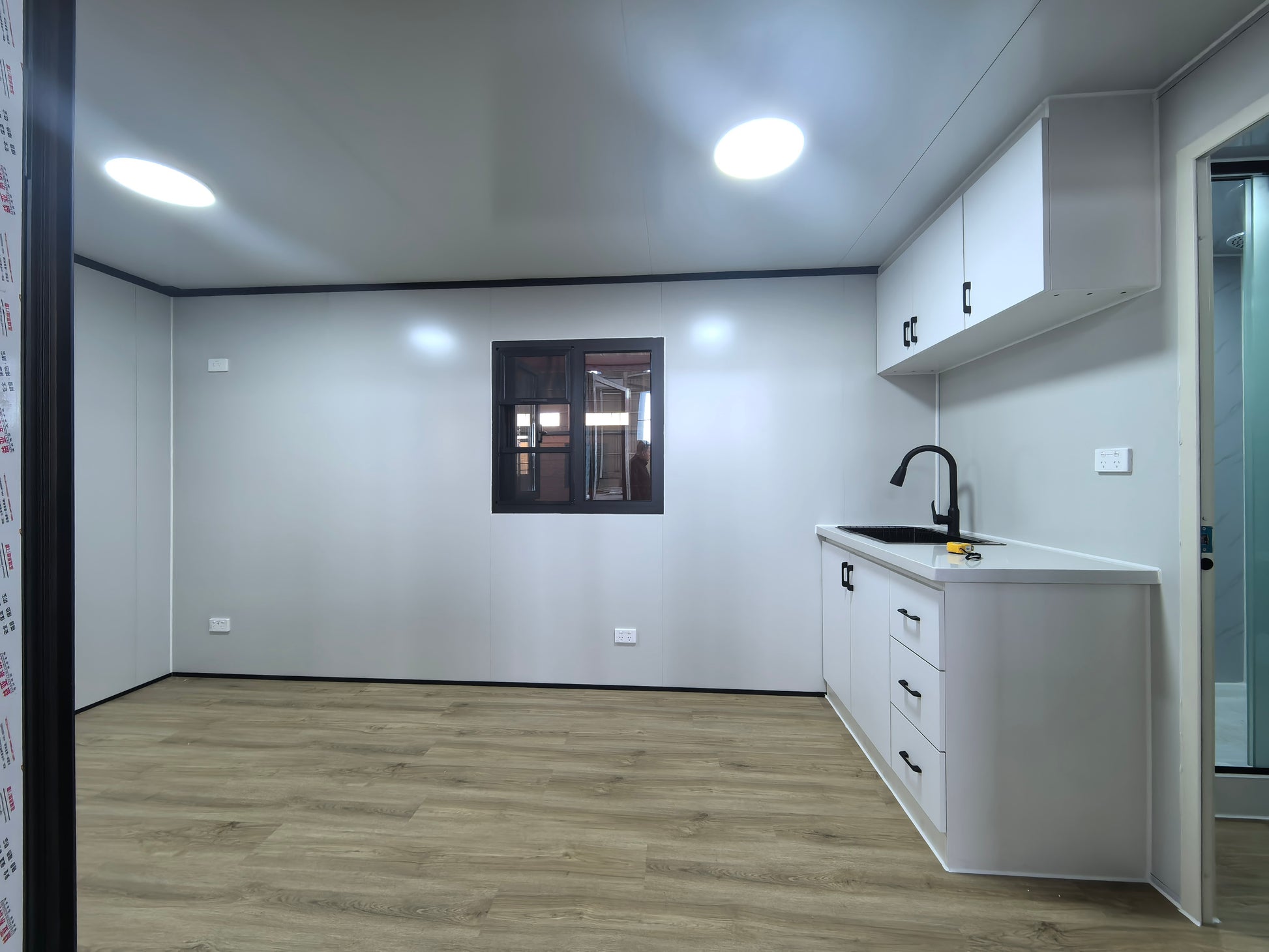

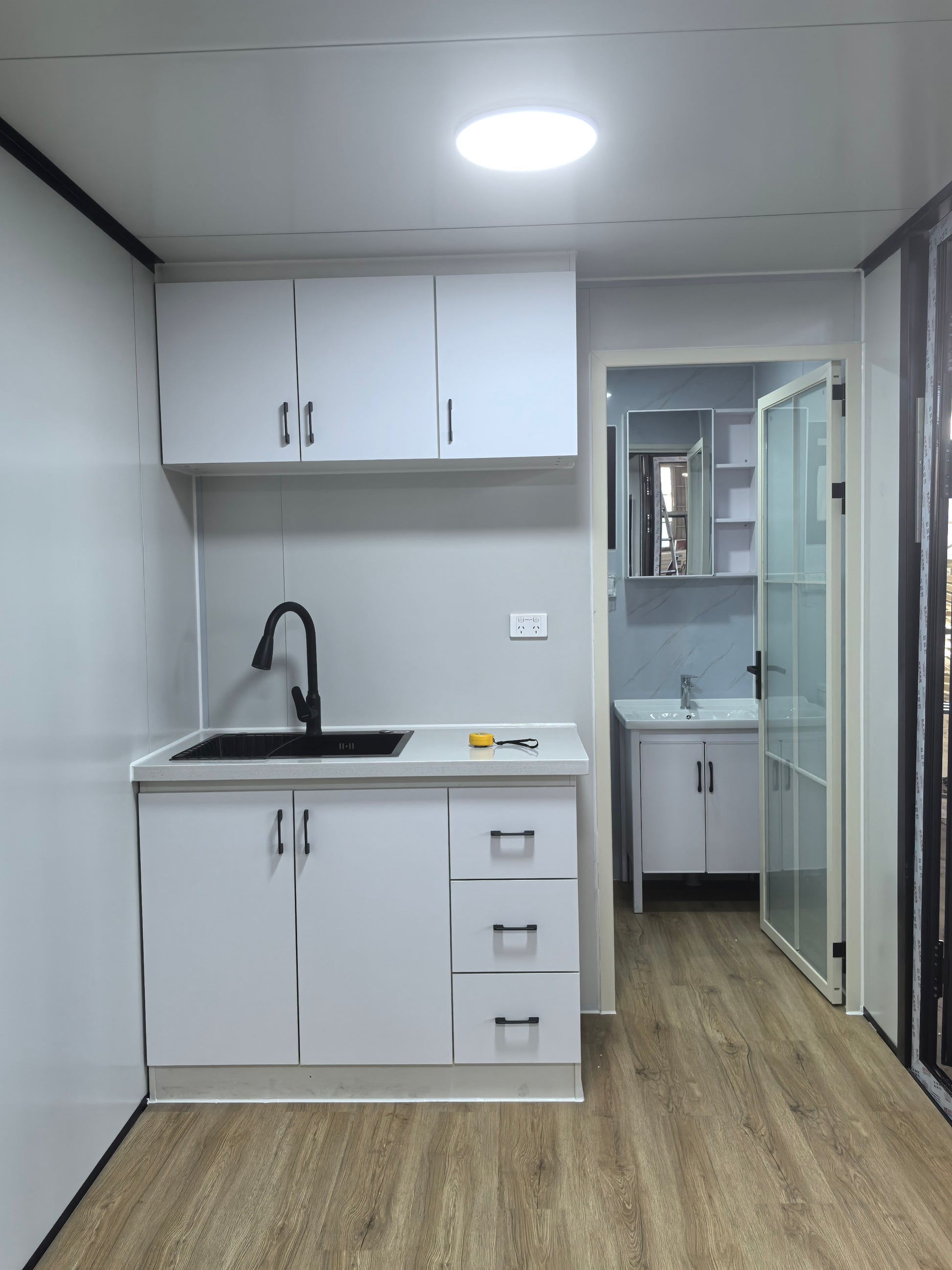

  • Kitchen

    • 900mm height kitchen L type cabinet
    • Double bowl stainless steel sink with flip mixer
    • 20mm Silica free quartz stone bench top
    • The kitchen is fully installed and ready for use upon connection to utilities.

  • Plumbing

    • Plumbing system including pipes, drainage pipes, and copper fittings that comply with Australian standards.
    • Toilet & pipes with watermark certification
    • All plumbing connections are on the external bathroom wall
    • Black water: 100mm connection
    • Grey water: 50mm connection
    • Hot/Cold water: ½ inch nipple require to connect hose (poly pipe)

  • Electricity system

    • Electricity equipped with RCDs, switches, sockets, air circuit breakers, and wires that comply AS 3000:2018 with SAA certificate.
    • 1.5mm power cable for all lights complies to AS 5000.2
    • 2.5mm power cable for all power points complies to AS 5000.2
    • Electrical Distribution Board installed with 3 circuits complies to AS60898.1
    • Mains power can be connected to cabin via 15 amp extension lead
    • Industrial waterproof plug socket with IP44+

  • Accessories

    • D-type Waterproof tapes
    • Buckle strips for inner roof & floor
    • Insulation Tapes
    • Screw and bolts
    • Other spares for floor etc.

  • Installation

    • Expandihome offers a DIY caravan/cabin.
    • Installation/set-up can be completed by the customer.
    • Setup typically takes 2-3 people approximately 1 days to complete
    • Local professional plumber and electrician services are suggested for connections.
    • A detailed step-by-step manual is included and available from our sales team.
